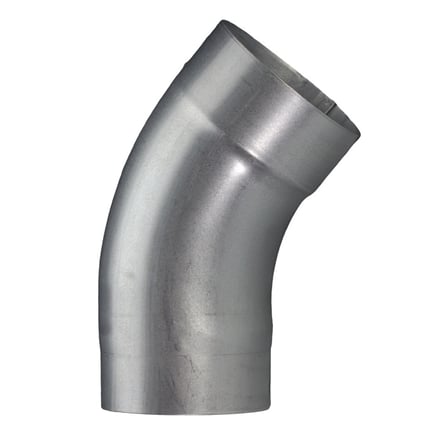

40° DEGREE DOWNSPOUT ELBOW

                                 Ideal for use on shallow overhangs of 6" to 8".
        This angle is great for transitioning from a wood wall to a brick or stone base.

 -Unpainted G-90 Galvanized-


.

SMOOTH ROUND 40° DEGREE ELBOW

  • Recommended for use with our premium Half Round European Steel gutter system.
  • Produced from 24 ga. (.024) G90 galvanized steel
  • Available in 3" & 4" pipe size only.
  • Also available in 85° and 72° bends.

 click for spec. sheet

 click for color chart

 click for color options

dark bronze describe the image describe the image Antique white anthracite







describe the image



40 degree elbow dwg

      40 Degree Offset DWG

pipe size part # d-1 e h
3" WTZ340 3.1" 3.75" 11.75"
4" WTZ440  4.0" 4.50" 13.50"
5" WTZ540 4.7" 4.0" 12.5"
