EXPANSION JOINT- COPPER

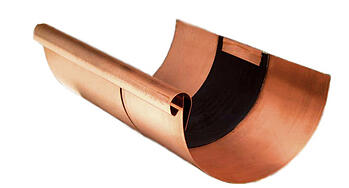

Expansion Joint

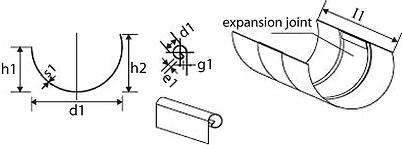

click here for Spec Sheet

size

d2

h1

h2

I1

d1

e1

g1

s1

5"

5.0"

2.52"

2.91"

11.80"

0.71"

0.28"

0.20"

.024"

6"

6.02"

3.03"

3.43"

11.80"

0.79"

0.35"

0.24"

.024"

7.6"

7.56"

3.78"

3.91"

11.80"

0.87"

0.35"

0.24"

.024"
